Glossary of Terms
Below you will find definitions of terms used in
this site, and in microscopy in general.
  • Abbe Condenser: an advanced illumination system which uses a lens under the stage that would typically move in the vertical direction. It would usually also have an adjustable iris to control the beam diameter of the light prior to entering the lens. By adjusting the iris opening and the lens distance from the target, the user has very good control over the amount of light and its focal point. Usually found on the more advanced microscope systems and very useful at higher magnifications (400X and above).
    BACK
  • Achromatic lens: a lens specially designed and coated to correct for the tendency of light to separate into colors when passing through glass. An achromatic lens corrects this such that colors are more accurate after being magnified.
    BACK
  • Binocular microscope: A compound microscope with two eyepieces viewing down a single optical channel and objective. This is different than a stereo microscope, which has a separate optical channel for each eye.  Click here for an example.
    BACK
  • C-mount & CS-mount: a.k.a. C/CS-mount, is a threaded standard developed for mounting a lens to a camera. Most commonly used for video cameras (i.e., CCTV cameras, not camcorders), and is used to mount cameras to microscopes. The mechanical definition of both standards is 1" diameter, 32 TPI (threads per inch), male on the lens (or microscope) side and female on the camera side. The optical definition of the C-mount is that the image reaches the focal plane, or camera's detector, at 17.5mm past the edge of the lens' (or microscope's) mounting threads. The CS-mount is identical in all respects except the focal plane is 12.5mm past the mounting threads. A CS-mount camera can be mounted on a C-mount lens or microscope by using a 5mm extension ring. See also: T-mount.
    BACK
  • Coaxial Controls: A configuration where one knob is centered on top of another. For example, coarse and fine focus may have a larger coarse focus knob with a fine focus knob on top of it (so the center of both knobs is on the same axis). Also commonly used for Mechanical Stage X/Y movement knobs.
    BACK

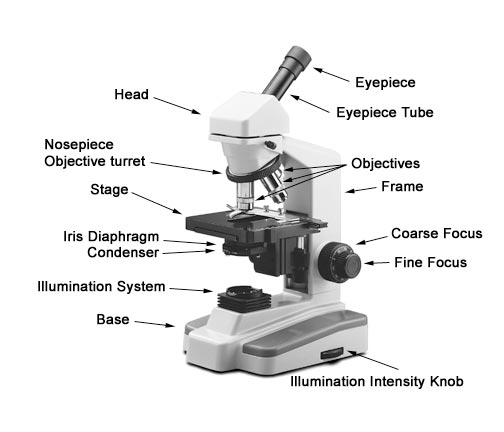

  • Compound microscope: Literally a microscope with multiple lenses, however that describes virtually all modern microscopes. It has come to refer to a microscope such as that pictured at the top of this page.  It would typically include multiple user-selectable objective lenses of varying magnifications and present a two-dimensional view. See also: stereo microscope.
    BACK
  • Digital microscope: A microscope and video camera combination with a digital output such as USB or firewire. Often includes software to display the image on a PC.
    BACK
  • DIN Standard Objectives: (Deutsches Institut fuer Normung) An international standard which dictates the design compatibility of the objective lens. Therefore DIN standard objectives from one manufacturer can be used in another manufacturer's DIN standard compatible microscope.
    BACK
  • Doublet lens: a lens design that is actually two different lenses cemented together (usually one positive magnifier and one negative). This design is used in widefield eyepieces to obtain significantly better color performance than single lens designs.
    BACK

  • Dual-view microscope:  A monocular microscope with a second, vertical viewing port. The vertical port can be used with an eyepiece for a second person, such as an instructor, to view the specimen, or it can be used with an adapter and a video or still camera. Click here for an example. See also: trinocular microscope.
    BACK
  • Eyepiece or Ocular: The lens closest to your eye when looking through a microscope. A binocular or stereo microscope will have two, a monocular microscope will have one. It also plays a critical role in the total system magnification. See also widefield eyepiece.
    BACK
  • Eyepiece Tube or Eyetube: The tube into which the eyepiece lens (ocular) is set. This is typically presented at an angle for comfortable viewing such as in the picture at the top of this page. However it may also be mounted in a vertical position such as on a trinocular or dual-view microscope for either a second viewer, or for a camera designed to fit inside an eyetube.
    BACK
  • FPS: frames per second: Used to indicate the speed in which a video image is refreshed and displayed on a monitor. In video microscopy this is usually controlled by the camera. The faster the refresh rate (number is larger), the "smoother" any movement of the specimen will appear.
    BACK
  • Interpupillary Distance: Distance between the two eyepieces. Typically it is adjustable to accommodate different users. Some microscopes also have graduated scales to indicate the actual distance between the eyepieces, allowing a user to determine the optimum number and then quickly set it before each use.
    BACK
  • Koehler illumination: A highly effective illumination design. Please click here for a more detailed definition.
    BACK
  • Mechanical stage: A mechanism mounted on top, or as part, of the stage that allows the operator to move the specimen slide in the X or Y direction by turning a knob. Very useful at higher magnifications as it can be difficult to move the slide by hand otherwise since it must be moved such a small amount. Also, moving by hand can be difficult since you must move it in the opposite direction. Most mechanical stages come with a graduated scale so you can see how far the slide has been moved or keep track of the position of various objects on the slide.
    BACK
  • Monocular microscope: A compound microscope with one eyepiece such as that pictured at the top of this page.
    BACK
  • Objective lens: The lens in a microscope closest to the specimen. In a compound microscope there are usually 3, 4 or 5 objective lenses allowing a selection of magnification levels.
    BACK
  • Oil Immersion lens: A lens designed to be immersed in oil. A drop of immersion oil is placed on top of the cover glass and the lens is slowly lowered until it rests in the oil. This allows the light to pass through oil rather than air, and at higher magnifications results in a crisper, higher contrast image. Primarily seen on more advanced systems.
    BACK
  • Parcentered: A lens design such that specimens that appear centered in the field of view at one magnification level will also appear centered when the magnification level is changed. See also: parfocal
    BACK
  • Parfocal:  A lens design such that specimens that appear in focus at one magnification will also appear focused when the magnification level is changed. Keep in mind, however, that depth of field (how much of a specimen's height will appear in focus at one time) changes significantly when magnification is changed. The higher the magnification, the shallower the depth of field. See also: parcentered
    BACK
  • Phase Contrast: A technique using special objectives and condenser system to enhance the contrast of unstained, relatively transparent specimens such as blood and other tissue cells, thereby allowing microscopic viewing of living tissue. It is a sophisticated technique that shifts the light "phase" 1/4 wavelength, causing any light deviated by the specimen to appear dark on a light background. Development of this technique by inventor Frits Zernike earned him a Nobel prize in physics in 1953. An excellent, more detailed discussion of this process can be found on the Molecular Expressions web-site here.
    BACK

  • Rack Stop: A safety feature consisting of a mechanical stop, usually adjustable, which prevents the objective lens from hitting the microscope stage.

  • Seidentopf: a head design where the interpupillary adjustment (increasing or decreasing the distance between the eyepieces) is achieved by twisting the eyepieces in an up and down arc motion like binoculars.
    BACK
  • Slip Clutch: A safety device usually located on the focus knob allowing the knob to "slip" and continue turning when it reaches the end of its travel, or if it runs into the stage. Due to the gear ratios involved, without this it may be possible to damage the mechanism by applying too much force to the knob after it has reached the end.

  • Stereo microscope a.k.a. dissecting microscope: A microscope with a separate optical channel for each eye (eyepieces and objectives) which allows viewing in three dimensions. See also: compound microscope.
    BACK
  • Turret or Objective Turret: The rotatable metal piece into which the microscope's objective lenses are attached. A "turret" style stereo microscope refers to the type that has more than one objective lens which can then be rotated into position. On a compound microscope the turret is the ring holding the objective lenses allowing the operator to rotate them into position as needed. See the picture at the top of this page.

  • T-mount: A photographic mechanical mounting standard developed in 1957 originally intended as a universal lens mount for 35mm cameras. There are now T-mounts available for a large variety of digital and film cameras making it a good method for mounting cameras to microscopes. The thread (a.k.a. T-thread) is specified as 42mm diameter and 0.75mm pitch, or M42-.75. See also: C-mount
    BACK
  • Trinocular microscope: A binocular microscope with a third, vertical viewing port. The vertical port can be used with an eyepiece for a second person, such as an instructor, to view the specimen, or it can be used with an adapter and a video or still camera. Click here for an example. See also: dual-view microscope.
    BACK
  • Widefield eyepiece (WF): an eyepiece with an achromatic doublet lens designed in such a way that it does not have to be limited to viewing only in its center, and the portion of the lens that allows non-distorted viewing is larger than a normal lens. This appears to the user as a bigger aperture or "hole" to look through. It therefore has the advantage of being easier to use and more forgiving of a user's head movements. An eyepiece listed as WF10X/18mm would indicate it has a widefield achromatic doublet lens, 10X magnification and is 18mm in diameter.
